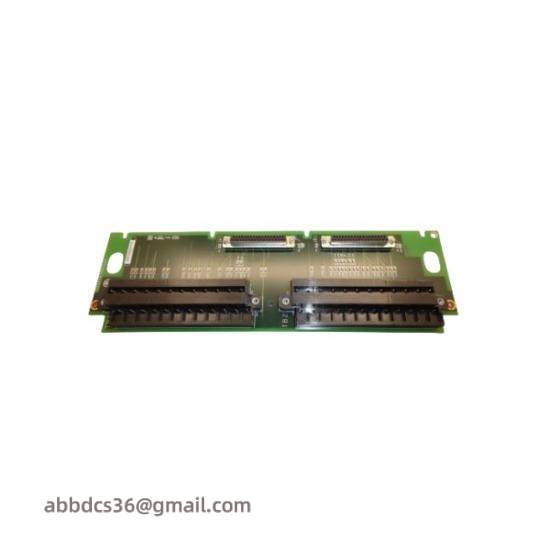

GE-FANUC IS200TRTDH1CCC RTD Termination Board

Product Type:Termination Board

Series:Mark VI

Manufacturer Designation:GE Type

Dimension (LxWxH):33 cm x 10.2 cm x 4.8 cm

Weight:0.54 kg

Connection Type:RTD

Operating Temperature Range:-20°C to +60°C

    Introducing the GE-FANUC IS200TRTDH1CCC RTD Termination Board, a critical piece of hardware for any industrial control system that requires high-precision temperature measurement. This board is engineered to withstand the rigors of industrial environments, offering a wide operating temperature range from -40°C to +85°C. Its input resistance can be customized between 100 Ohms to 1 kOhm, ensuring compatibility with a variety of RTD (Resistance Temperature Detector) sensors.

    Featuring versatile output signal types, either 4-20 mA or 0-10 V, this termination board is ideal for integrating with existing systems that require flexible signal transmission. It supports a stable power supply voltage of 12V DC, ensuring reliable operation under various power conditions.

    For communication purposes, it utilizes MODBUS, a widely adopted protocol in industrial automation, allowing seamless data exchange with other devices in the network. With only one input channel, it is designed to measure a single RTD sensor at a time, providing precise readings without interference from multiple sensors.

    Compact and lightweight, measuring 75mm x 60mm x 20mm and weighing only 0.1kg, the IS200TRTDH1CCC RTD Termination Board is easy to install and maintain in tight spaces within industrial machinery. Its robust design ensures durability and longevity in harsh environments.

    To facilitate quick installation and troubleshooting, the board comes with comprehensive documentation and technical support from GE-FANUC. Users can easily connect to the device using standard cables and interface with the system through established protocols, making it a user-friendly solution for temperature measurement tasks in manufacturing, research, and engineering applications.
