GE IS200DAMAG1ACA: Advanced Gate Drive Amplifier & Interface Board for GE Speedtronic Systems

In stock

The GE IS200DAMAG1ACA is a critical component for high-performance gate drive amplification in GE Mark VI speed control systems, designed to enhance turbine efficiency and reliability.

Model Type:Gate Drive Amplifier and Interface Board

Parent Model:IS200DAMAG1

Submodel:ACA

Series:Innovation Series 620 Frame Low Voltage Drives

Component:For Use with Single IGBT Modules

Power Source Compatibility:Standard GE Power Supply

Dimensions (WxHxD):14.8 x 10.3 x 3.2 cm

Weight:0.9 Kg

Interface Compatibility:Bridge Personality Interface Board

Material:High-grade Insulative Materials

Performance Indicator:Optimized for Enhanced System Response

Safety Certification:UL, CE, ISO 9001:2015 Compliant

Crafted specifically for integration into GE’s Innovation Series drives, the IS200DAMAG1ACA amplifies gate signals with precision, enhancing the performance of gas and steam turbines.

It seamlessly connects to a single IGBT module each for the upper and lower phase legs, utilizing CM1000HA-28H Powerrex IGBTs for reliable power handling.

Designed for direct connection to the Bridge Personality Interface board, it ensures efficient signal transmission, improving the overall control accuracy and system stability.

Withstanding a wide operating temperature range from -40°C to +85°C, the IS200DAMAG1ACA is engineered for robust performance under diverse environmental conditions.

Backed by comprehensive certifications including UL, CE, and ISO 9001, this product meets stringent international safety and quality standards, providing peace of mind for users.

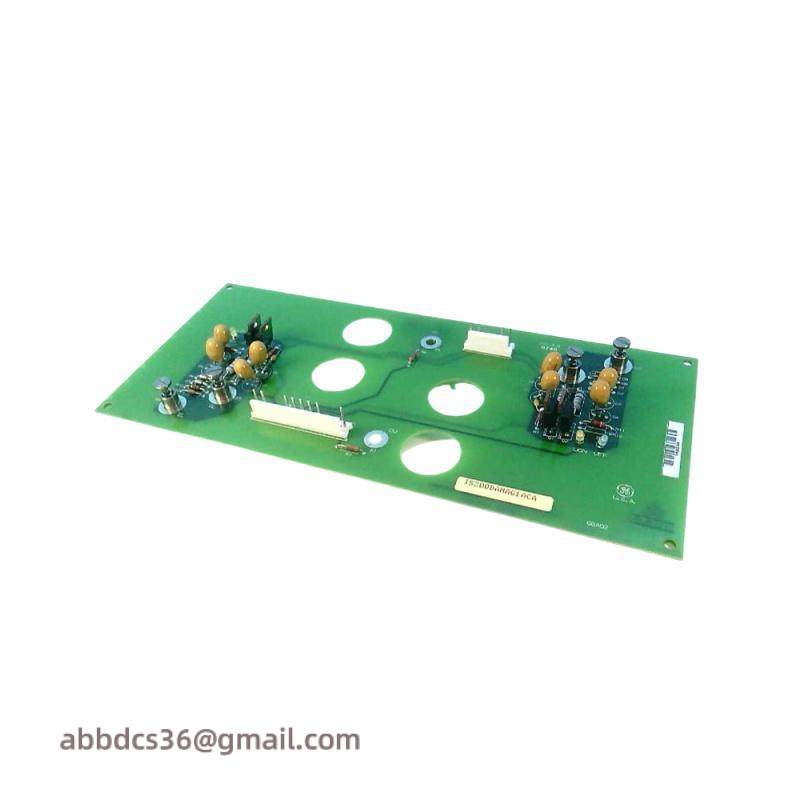

GE IS200DAMAG1ACA Gate Drive Amplifier and Interface Board
