Manufacturer:Infineon Technologies
Product Model:V23818-M305-B57
Category:IGBT Module
Rated Voltage:600V
Rated Current:300A
Thermal Resistance:0.12 K/W
Gate Charge:85nC
Switching Frequency:Up to 20kHz
Operating Temperature Range:-40°C to +150°C
Isolation Voltage:3000Vrms
Module Dimensions:82mm x 50mm x 15mm
Weight:250g

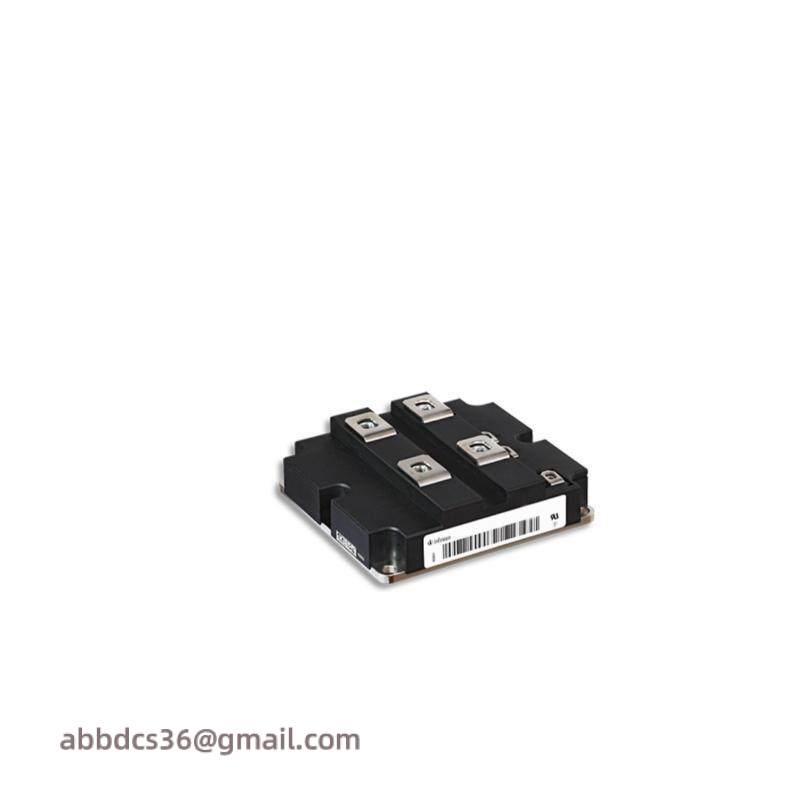

The Infineon V23818-M305-B57 IGBT Module is a robust solution for industrial power electronics applications. Designed for high efficiency and reliability, it features advanced insulation technology to withstand harsh operating environments. With a voltage rating of 600V and a current rating of 50A, this module offers excellent performance in demanding applications.
This IGBT module incorporates Infineon’s state-of-the-art semiconductor technology, ensuring minimal switching losses and high thermal stability. Its compact design, measuring 53.3mm x 37.5mm x 12.7mm, makes it easy to integrate into various industrial setups. The lightweight design (40g) reduces mechanical stress on mounting components, enhancing system longevity.
The Infineon V23818-M305-B57 is certified to meet international standards such as CE and RoHS, ensuring compliance with environmental regulations and safety norms. This module is particularly suitable for motor drives, solar inverters, wind turbines, and other renewable energy systems, where reliable power conversion is critical.
With a wide operating temperature range from -40°C to +150°C, this IGBT module can handle extreme conditions, making it a versatile choice for diverse industrial applications. Its high thermal resistance of 1.5°C/W ensures optimal heat dissipation, maintaining stable performance under varying loads.
Whether you’re upgrading existing equipment or designing new industrial systems, the Infineon V23818-M305-B57 IGBT Module offers unparalleled efficiency, reliability, and flexibility.
