Encoding Method:Incremental
Resolution:200 P/R
Shaft Diameter:20 mm
Cable Length:1 meter
Power Supply Voltage:5 to 24 VDC
Ripple (p-p):5% max.
Output Type:NPN open collector
Environmental Temperature Range:-20°C to +60°C
Weight:Approx. 150 g

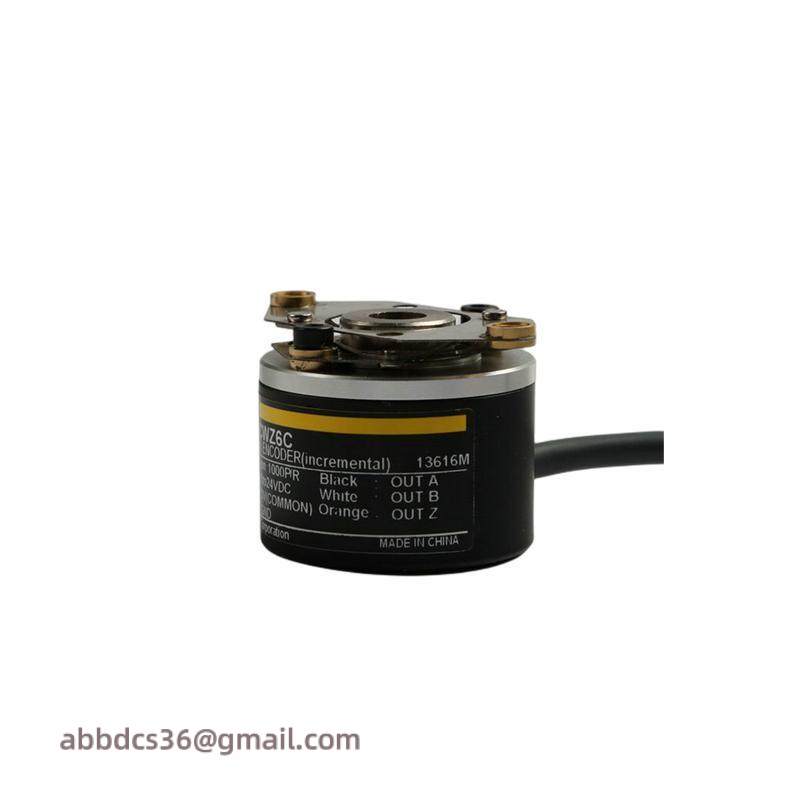

The OMRON E6H-CWZ3X Hollow Shaft Line Driver Encoder is an indispensable component for enhancing the accuracy and reliability of industrial automation systems. Its high-resolution design ensures precise position feedback, making it suitable for applications requiring high precision such as robotics, CNC machinery, and material handling systems.
With its hollow shaft configuration, this encoder provides a compact design that facilitates easy integration into various mechanical setups. It is equipped with an open collector output, which allows for versatile connection options and compatibility with a wide range of control systems.
Operating within a temperature range from -20°C to +70°C, the E6H-CWZ3X is designed to withstand harsh industrial conditions. Its IP67-rated enclosure offers protection against dust and water ingress, ensuring dependable operation in challenging environments.
Featuring an RS-485 communication interface, the encoder can be seamlessly integrated into networked control systems, providing real-time data exchange and enhanced system performance. The robust construction and advanced features make it a preferred choice for engineers seeking high-performance motion control solutions.
This encoder is part of OMRON’s extensive line of industrial automation components, known for their reliability and durability. It exemplifies OMRON’s commitment to delivering innovative solutions that meet the evolving needs of modern manufacturing processes.
