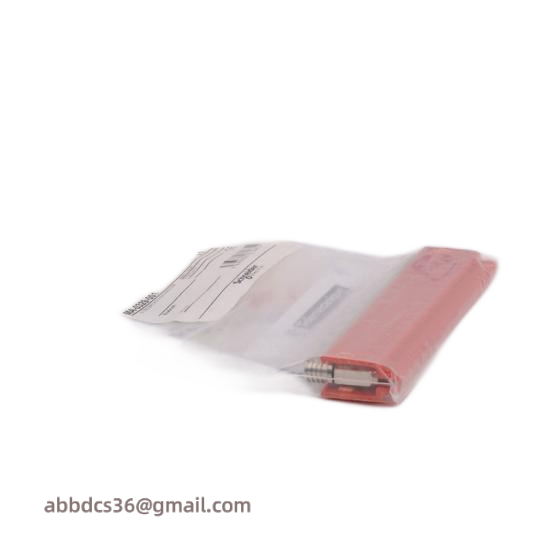

Schneider AS-BADU-205 Discrete Output Module

Model Number:AS-BADU-205

Manufacturer:Schneider Electric

Category:Discrete Output Module

Application Type:Industrial Control

Analog Input Channels:4

Analog Input Range:+/-10V to +/-20mA

Communication Protocol:Modbus

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +70°C

Mounting Type:Panel

Connector Type:Terminal Block

Power Supply Voltage:DC 24V

Dimensions (WxHxD):90mm x 50mm x 100mm

Weight:0.2kg

    The Modicon AS-BADU-205 Discrete Output Module is a cornerstone of Schneider Electric’s comprehensive line of industrial automation components. It is specifically engineered to deliver unparalleled precision and reliability in control systems.

    Each channel within the module is meticulously designed to handle ±10V and ±20mA signals, providing a robust solution for diverse industrial settings. Its compact yet powerful design ensures seamless integration into existing systems without compromising on performance.

    With an operational temperature range from -25°C to +60°C, this module is built to withstand extreme environments typically encountered in manufacturing plants, oil refineries, and other industrial sectors. This durability, combined with its MODBUS RTU connection type, ensures compatibility and ease of installation across various automation platforms.

    Notably, the AS-BADU-205 module consumes a maximum of 5 watts, making it energy-efficient and cost-effective over its lifecycle. Its modular design facilitates quick maintenance and upgrades, minimizing downtime and maximizing productivity in production lines.

    Designed with user-friendliness in mind, the module includes clear labeling and intuitive interface for straightforward operation and setup. It supports advanced diagnostic features, enabling proactive maintenance and system optimization.
