Model Type:CPU 314C-2DP
Operating System:SIMATIC
Processor Speed:20 MHz
Memory:14 KB RAM, 1 KB EEPROM
I/O Ports:14 Digital Inputs, 10 Digital Outputs
Communication Interface:MPI, PROFINET
Power Consumption:30 W (max.)
Dimensions:160 x 120 x 90 mm
Weight:1.1 kg
Protection Class:IP20
Operating Voltage:AC 85-264 V, 47-63 Hz

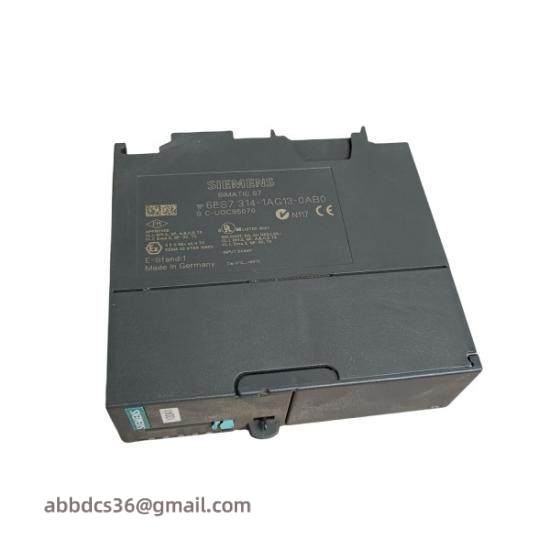

The Siemens 6ES7 314-1AG13-0AB0 is a state-of-the-art processor module engineered for unparalleled performance in demanding industrial environments. This compact yet robust PLC (Programmable Logic Controller) module is specifically designed for the S7-300 series, offering exceptional control capabilities with its powerful 1214C CPU. It seamlessly integrates into existing automation systems, providing a reliable foundation for complex control tasks.
Featuring 24 digital inputs (DI) and 16 discrete outputs (DO), the 6ES7 314-1AG13-0AB0 ensures precise data acquisition and control actions, critical for manufacturing processes requiring high accuracy and speed. Its broad operating voltage range of 85-264 V AC at 47-63 Hz makes it suitable for a wide variety of applications worldwide, ensuring compatibility and reliability across diverse industrial settings.
With a memory capacity of 75 KB, this module offers ample space for storing user programs and data, facilitating complex control logic and extensive customization options. Its compact design, measuring 4.488 x 4.606 x 3.465 inches, and weighing just 1.043 pounds, ensures minimal installation footprint and easy integration into existing systems.
The Siemens 6ES7 314-1AG13-0AB0 is crafted from high-quality materials, including durable aluminum and reinforced plastic components, which not only enhance its mechanical stability but also contribute to its long operational life. These materials are selected for their excellent heat dissipation properties, ensuring optimal performance even under high load conditions.
For ease of use, the module supports intuitive programming via the popular SIMATIC Step 7 software, allowing engineers to quickly develop, test, and implement control programs tailored to specific application requirements. The inclusion of a comprehensive set of documentation and support resources further facilitates the learning curve for new users, making it accessible to both experienced professionals and newcomers to the field.
