Number of Digital Inputs:8 channels
Input Voltage:24VDC
Channels with M12 Connector:4
Operating Temperature Range:-25°C to +55°C
Power Supply:Separate
Communication Interface:Profinet
Module Type:DI
Enclosure Type:IP20
Dimensions (WxDxH):62mm x 20mm x 100mm
Weight:0.1kg

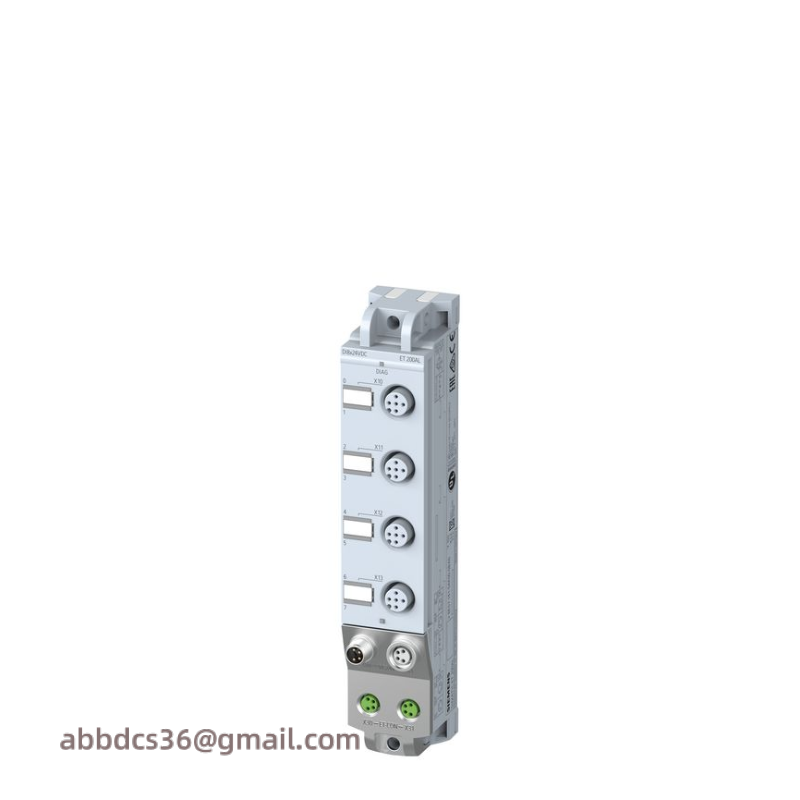

Integrating seamlessly into the SIEMENS ET 200AL series, this digital input module is optimized for high-speed signal processing and monitoring applications in industrial automation.
Each of the 8 digital inputs is equipped to handle signals from various sensors, enabling precise control and monitoring across different machinery components.
The inclusion of 4 channels with M12 connectors ensures easy integration with a wide range of sensors, enhancing the flexibility and adaptability of your system.
Operating within a temperature range of -25°C to +55°C, this module is designed to withstand harsh industrial conditions, ensuring reliable performance even in challenging environments.
With its separate power supply and Profinet communication interface, the module offers enhanced stability and data transfer capabilities, facilitating seamless integration with other SIEMENS automation systems.
