Number of Inputs:8
Input Voltage:24VDC
Input Type:Sink/Sources
Number of Outputs:8
Output Voltage:24VDC
Output Current per Channel:0.75A
Operating Temperature Range:-25°C to +60°C
Connection Type:Optical Isolation
Signal Delay Time:4.5ms
Power Consumption:3W
Isolation Rating:500VAC for 1 minute

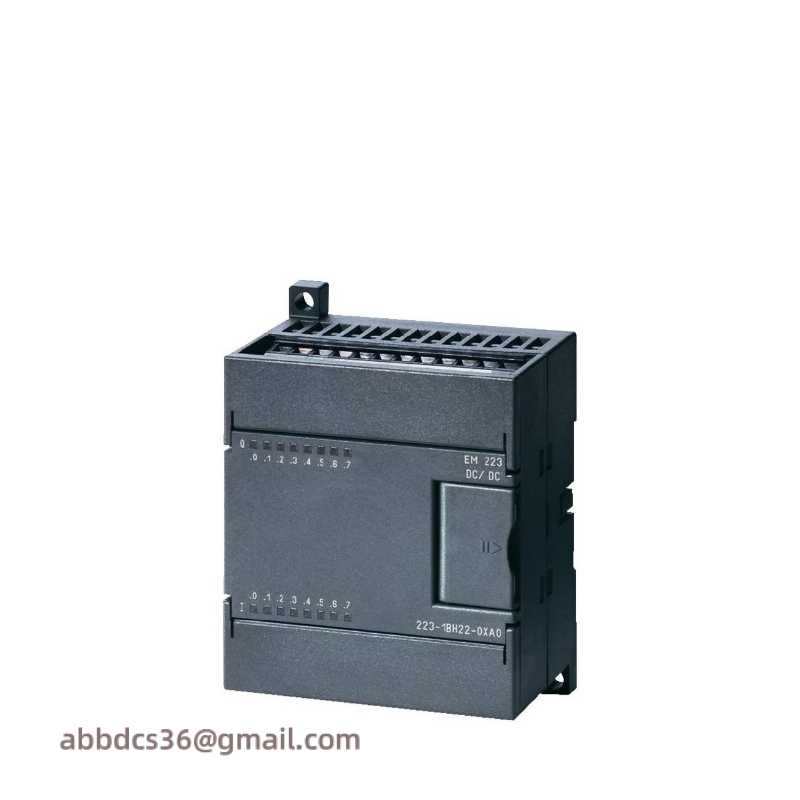

The SIEMENS 6ES7223-1BH22-0XA0 EM223 digital I/O module is designed with advanced features to support seamless integration into various industrial control systems. It ensures reliable data transmission with its robust optical isolation, enhancing system immunity against electromagnetic interference. Each input channel is equipped to handle 24V DC power with a current rating of 4mA, ensuring precise signal processing. Similarly, the 8 output channels are capable of delivering up to 24V DC at 0.75A, providing the necessary power for actuators and other devices. This module is not only compatible with SIMATIC S7-1200 CPUs but also designed to work seamlessly with other Siemens automation systems, offering a cohesive solution for industrial automation projects.
Manufactured by SIEMENS, known for its commitment to quality and reliability, this digital I/O module is meticulously engineered to withstand harsh industrial environments. Its temperature range of -25°C to +60°C allows for operation in a wide variety of conditions, ensuring uninterrupted performance across different climates. The relay contact rating of 24V DC, 0.75A ensures a safe and efficient operation, minimizing the risk of electrical hazards. The integrated optical isolation further enhances safety by physically separating the input and output circuits, reducing the possibility of short circuits and improving overall system stability.
The compact size of the SIEMENS 6ES7223-1BH22-0XA0 EM223 makes it an ideal choice for space-constrained applications. Its dimensions of 100mm x 68mm x 40mm enable easy installation within control panels or cabinets without compromising on functionality. Furthermore, its compatibility with SIMATIC S7-1200 PLC series and other Siemens automation components ensures a streamlined setup process, allowing for quick deployment in manufacturing lines and other industrial settings.
For users seeking to enhance their industrial automation capabilities, the SIEMENS 6ES7223-1BH22-0XA0 EM223 offers unparalleled reliability and efficiency. With its comprehensive set of features and robust construction, it is poised to deliver superior performance in a range of industrial environments. Whether you’re integrating into existing systems or setting up new automation projects, this module provides a solid foundation for achieving optimal productivity and efficiency.
To maximize the benefits of the SIEMENS 6ES7223-1BH22-0XA0 EM223, we recommend consulting the official SIEMENS documentation for detailed installation guidelines and technical specifications. Our team of experts is also available to provide guidance and support throughout the process, ensuring a smooth integration and optimal utilization of the module in your specific application.
