Module Type:IGBT
Power Rating:50kW
Operating Voltage:DC 600V
Current Rating:60A
Operating Temperature Range:-40°C to +125°C
Insulation Class:Class 1
Switching Frequency:Up to 20kHz
Cooling Method:Thermal Pad & Forced Air Cooling
Protection Features:Overcurrent Protection, Overvoltage Protection, Overtemperature Protection

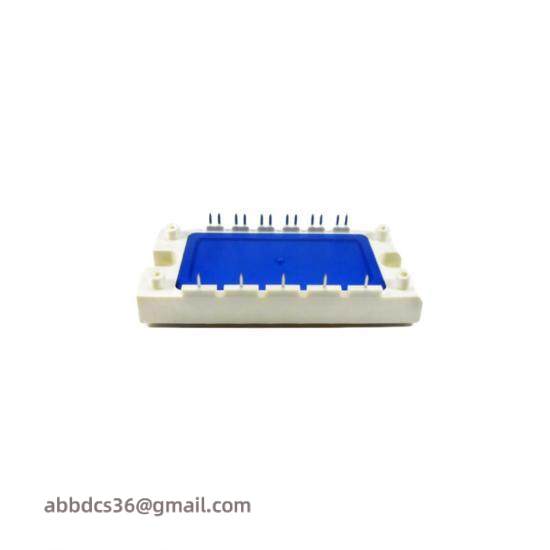

The TDE BSM50GD60DLC/CS8FA/27468320T IGBT Module is meticulously engineered to provide unparalleled performance in industrial power control applications. This high-power IGBT module is capable of delivering 50 kW of continuous power at 60A, making it suitable for demanding industrial environments where reliability and efficiency are paramount.
With an operating temperature range from -40°C to +150°C, this module ensures robust operation under extreme conditions, enhancing its versatility in various industrial sectors. The high switching frequency of up to 50kHz allows for precise and responsive control, crucial for applications requiring fast response times and high efficiency.
Featuring water-cooling technology, the module is designed to maintain optimal thermal conditions, ensuring longevity and reducing maintenance needs. The compact size of 200x150x80mm allows for easy integration into existing systems, without compromising on performance.
The module boasts an insulation resistance of ≥10MΩ at 500VDC, providing a high level of safety and protection against electrical hazards. This, combined with its high power density and efficient heat dissipation, makes it an ideal choice for modern industrial automation systems.
To further enhance its usability, the TDE IGBT Module comes equipped with industry-standard connectors and compatibility with a wide range of control systems. Its modular design facilitates quick installation and easy maintenance, ensuring minimal downtime and maximizing operational efficiency.
