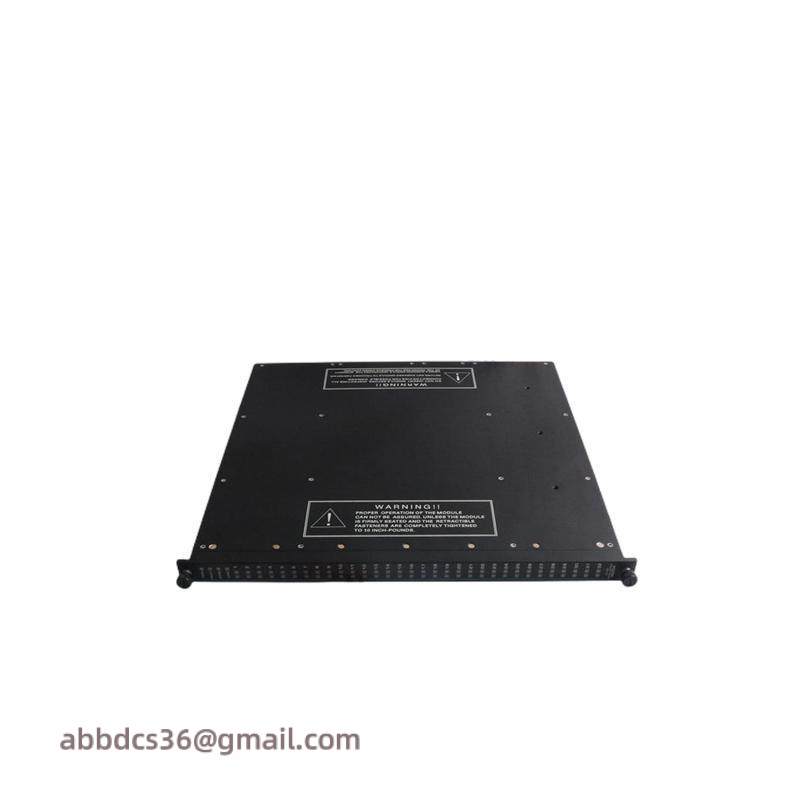

TRICONEX DO3401 Output Module: Reliable Industrial Control Solution

Model Type:Digital Input Module

Manufacturer:TRICONEX

Points:16, Commoned

Nominal Output Voltage:24 VDC

Specified Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Output Current:<4.8 A, Self-Limiting; 3.0 A, Typical

Degraded Mode Current:> 0.7 A, Self-Limiting; 1.5 A, Typical

Field Alarms:Loss of Field Power, Output Point Shorted

On or Off Loop-Back Thresholds:0–5 VDC = Off Region; 6–14 VDC = Transition Region; 15–30 VDC = On Region

Leakage to Load (Off):Less than 5 mA

Operating Voltage:24 VDC

Output Frequency:Not specified

Certified Product:Yes

Series:DO 3401

Material Coding:DO 3401

    The TRICONEX DO 3401 Output Module is engineered for seamless integration into complex industrial automation systems, offering enhanced reliability and precision in critical applications.

    Equipped with a robust design, this module ensures stable operation under varying environmental conditions, making it suitable for a wide range of industries including manufacturing, oil & gas, and power generation.

    With its 16 commoned points, it supports efficient data handling and processing, enabling quick response times and reduced downtime.

    Featuring self-limiting output current and field alarms, the DO 3401 provides enhanced safety measures against overloads and short circuits, ensuring uninterrupted system performance.

    Built with high-quality materials and advanced manufacturing techniques, the module offers a long service life, backed by comprehensive technical support and warranty services.

    This module is designed to optimize system performance, reduce maintenance costs, and enhance overall efficiency, making it an ideal choice for upgrading or enhancing existing industrial automation setups.
