Dimensions:356 x 279 x 102 mm
Enclosure Type:Optional NEMA type 4
Dual Speed/Load Dynamics:Available
Input Voltage:180–264 Vac (47–63 Hz)
Keypad/Display:2 Line LED and 30 Keys
Output Type:2 Actuator Outputs, 8 Relay Outputs, 6 Programmable Current Outputs
Operating Temperature Range:-25 to +65 °C
Weight:Less than 10 lbs.

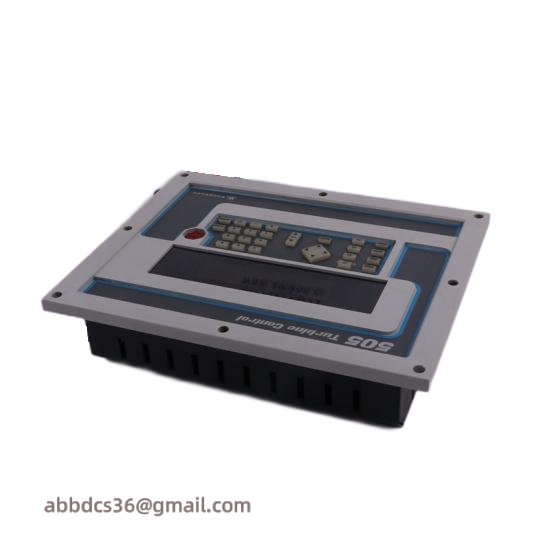

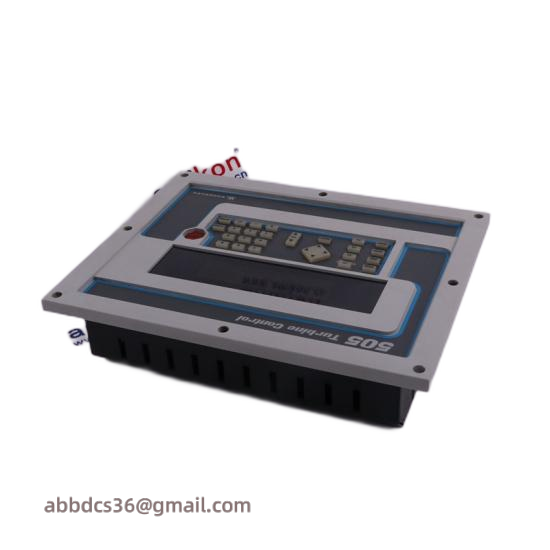

This installation baseplate module from Woodward is a critical component in the 505 and 505E series of microprocessor-based control systems. Designed for durability and efficiency, this module features dual-speed/load dynamics which enhance its adaptability across various industrial applications.
The baseplate supports operation within an input voltage range of 180–264 Vac, ensuring compatibility with a wide array of power supplies. With a keypad/display offering 2 lines and 30 keys, it provides intuitive user interaction for easy configuration and monitoring.
Operational in temperatures ranging from -25°C to +65°C, this module is well-suited for environments where conditions can vary significantly. The module includes 2 actuator outputs, 8 relay outputs, and 6 programmable current outputs, providing comprehensive control options.
Made to meet international standards including CE, UL, and cUL, the Woodward 9907-165 installation baseplate module is certified for safety and reliability, ensuring peace of mind in any industrial setup.
