Model:UT350L-00
Type:Limit Controller
Universal Input:Yes
Alarm Outputs:2
Retransmission Output:Included
Communication Interface:RS485 (Optional)
Measuring Value Display:20mm Large LED Display
Setpoint Exceedance Time:Total time counting
Maximum Temperature Retention:Register
Weight:Approx. 1 kg or less
Dimensions:96 (W) x 96 (H) x 100 (D) mm
Mounting:Direct Panel Mounting; Mounting Bracket
Cutout Dimensions:92+0.8 0 (W) x 92+0.8 0 (H) mm
Attitude:Up to 30 degrees above horizontal
Wiring:M3.5 (ISO 3.5 mm) Screw Terminals

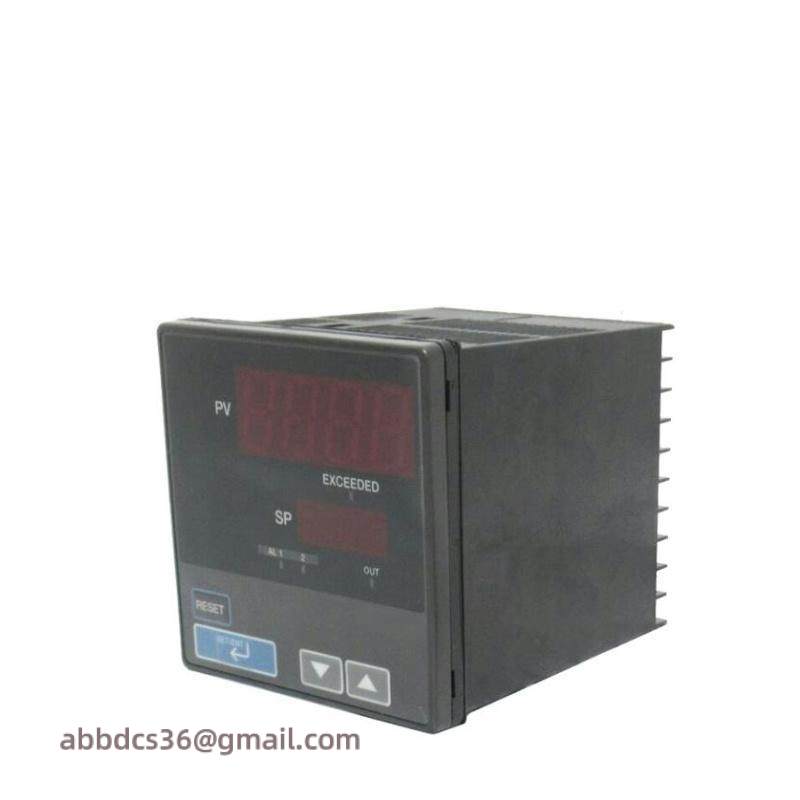

The Yokogawa UT350L-00 Limit Controller offers a large LED display with a character size of 20mm, ensuring excellent readability for real-time monitoring of critical parameters in industrial settings.
With its universal input capability, the controller is adaptable to a wide range of signal types, allowing for easy configuration and integration into diverse systems.
Equipped with two adjustable alarm outputs and a retransmission function, the UT350L-00 ensures reliable system notifications and data transmission, enhancing operational efficiency.
Innovative features like a timer to track the total time the setpoint is exceeded and a register to retain the maximum temperature reached provide valuable insights for process optimization.
The controller’s robust design includes front panel drip-proof protection (compatible with IP55 standards) and comes with an ABS resin and polycarbonate case, ensuring durability and longevity in harsh industrial environments.
