Bently Nevada 3500/54 (286566-01) overspeed detection module
It is a monitoring and protection device designed specifically for industrial rotating machinery.
It is used for real-time monitoring of mechanical equipment’s overspeed, zero speed, and performance within the speed range,
And provide reliable alarm and protection functions, widely used in steam turbines, compressors, and other high-speed rotating equipment.
Product Overview
Attribute Details
Model 3500/54
Order number 286566-01
Equipment type: Overspeed Detection Module
Bently Nevada 3500 Series
Main functions include overspeed protection, zero speed detection, and multi speed segment monitoring
Installed in the 3500 frame as an independent protection module
Key features
Multi channel design:
Provide two monitoring channels, each working independently and supporting redundant or multi-point monitoring.
Real time alarm function:
Built in Alert and Danger alarm mechanisms ensure the safe operation of the device.
Support alarm relay output, used to trigger protective actions or notify the control system.
Compatible with multiple sensors:
Supports use with Bently Nevada’s eddy current probes, magnetic sensors, and optical sensors.
Modularity and Scalability:
As part of the 3500 series, it seamlessly integrates with other modules such as the 3500/22 communication module.
Support hot swapping, modules can be replaced without shutting down, making maintenance convenient.
technical parameter
Parameter details
Number of channels: 2 channels
Support sensor types such as eddy current probes, magneto resistive sensors, optical sensors, etc
Speed range 1 to 120000 RPM
Output signal warning and danger alarm output, which can trigger the protection system
Alarm delay configurable, typical value 0-60 seconds
The power supply voltage comes from the 3500 series frame
Operating temperature -30 ° C to+65 ° C
Storage temperature -40 ° C to+85 ° C
The protection level meets industrial standards, with high temperature resistance, dust resistance, and shock resistance

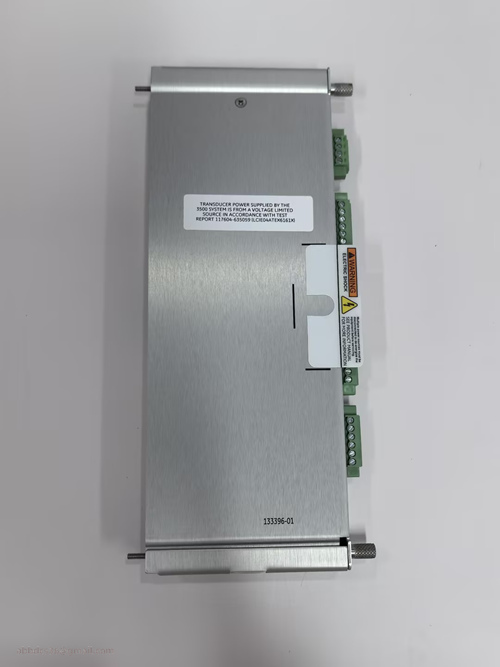

Product details picture:
Bentley Nevada 3500/54M Position Monitor – Advanced Industrial Automation Solution
